Conquer the city streets or the bike trails
Experience the great outdoors like never before. With a powerful 1500W motor you'll be able to conquer any terrain with ease, weather you're taking trips into town or hitting the trails.
Top Speed
28 MPH
Range
74 Miles
Battery
48v Lithium-Ion
Motor Power
1500W Peak
Unmatched Price & Performance

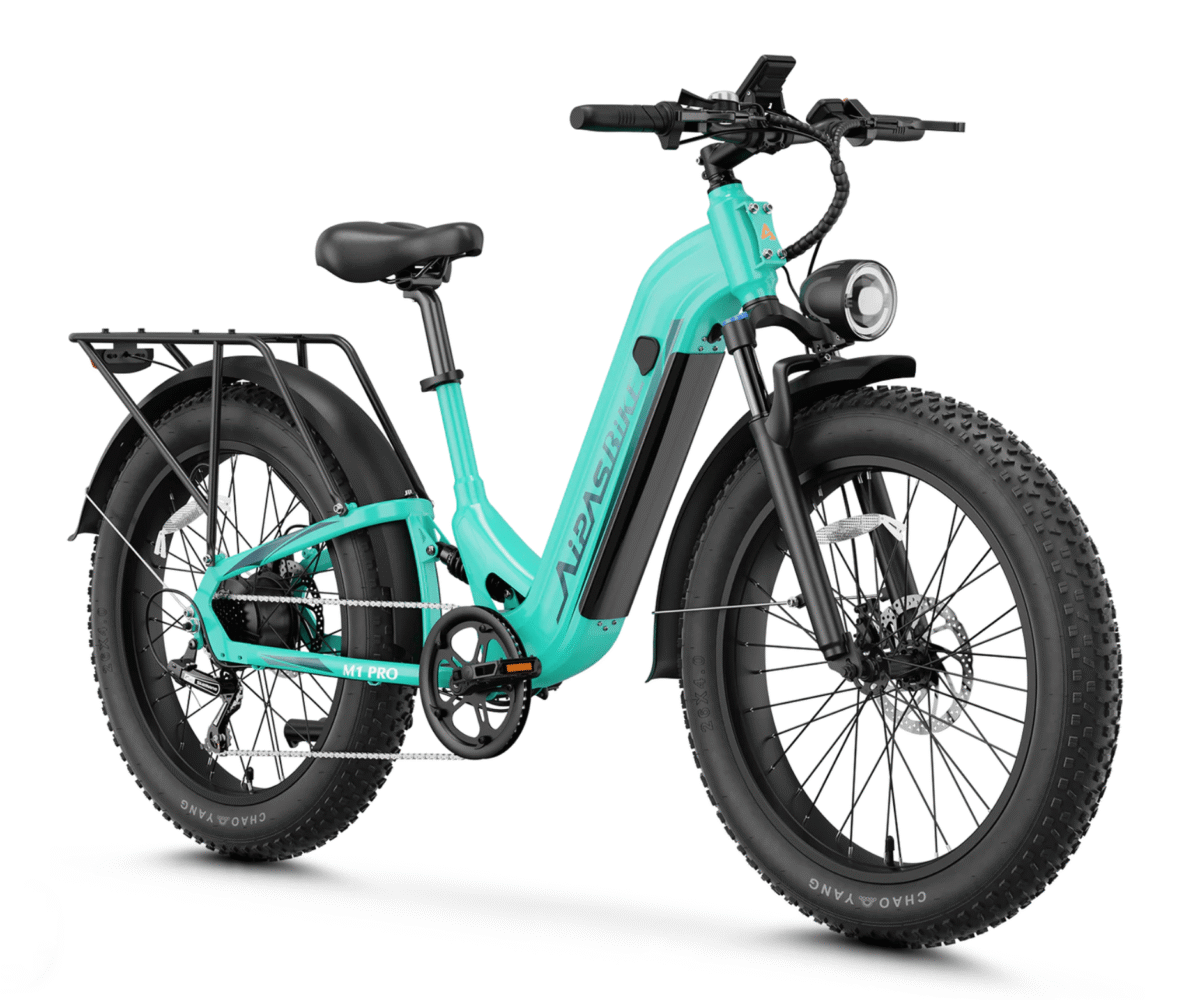

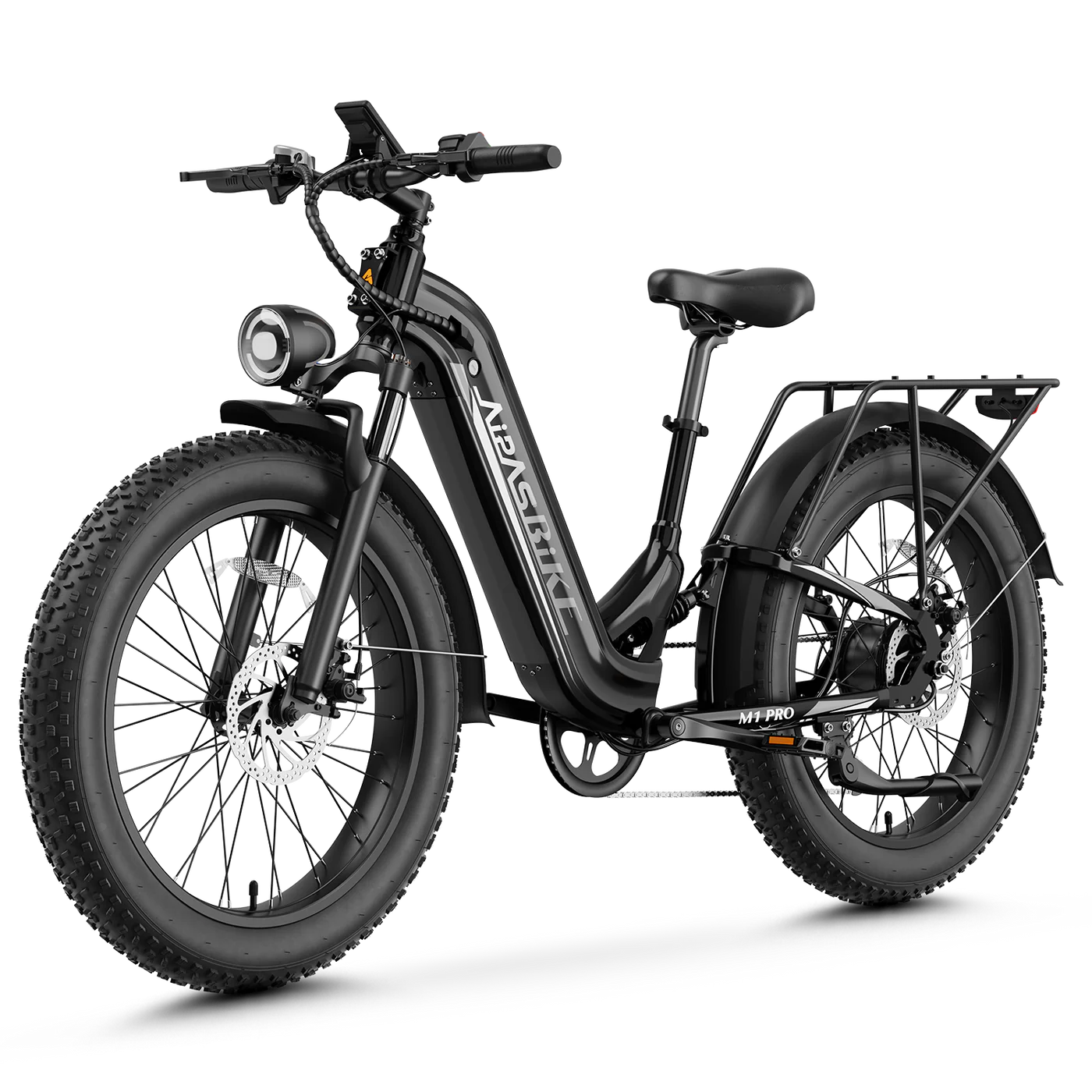

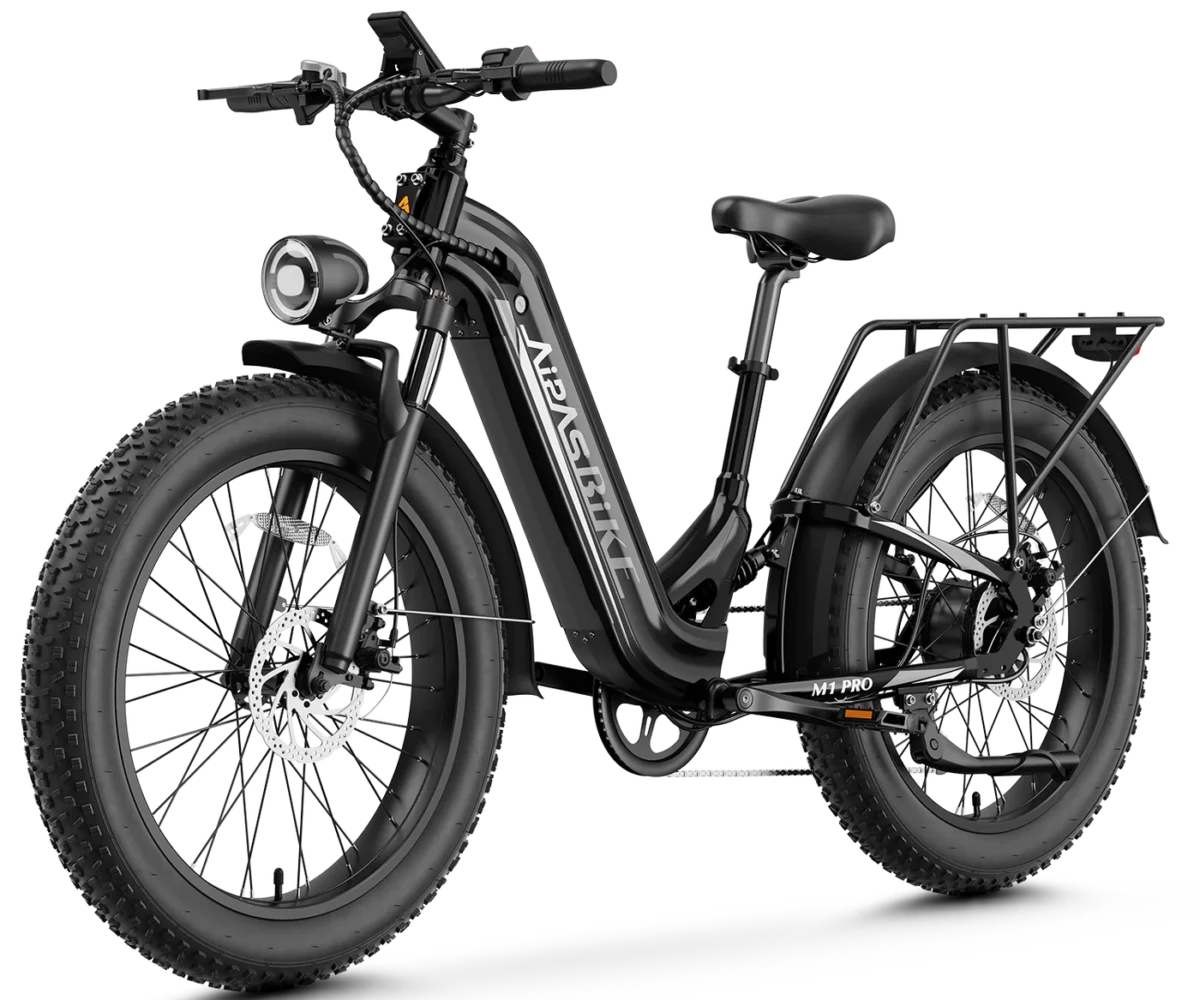

Take to the streets or the trails with this powerful all-terrain commuter e-bike.
BAFANG 1500W Peak Power

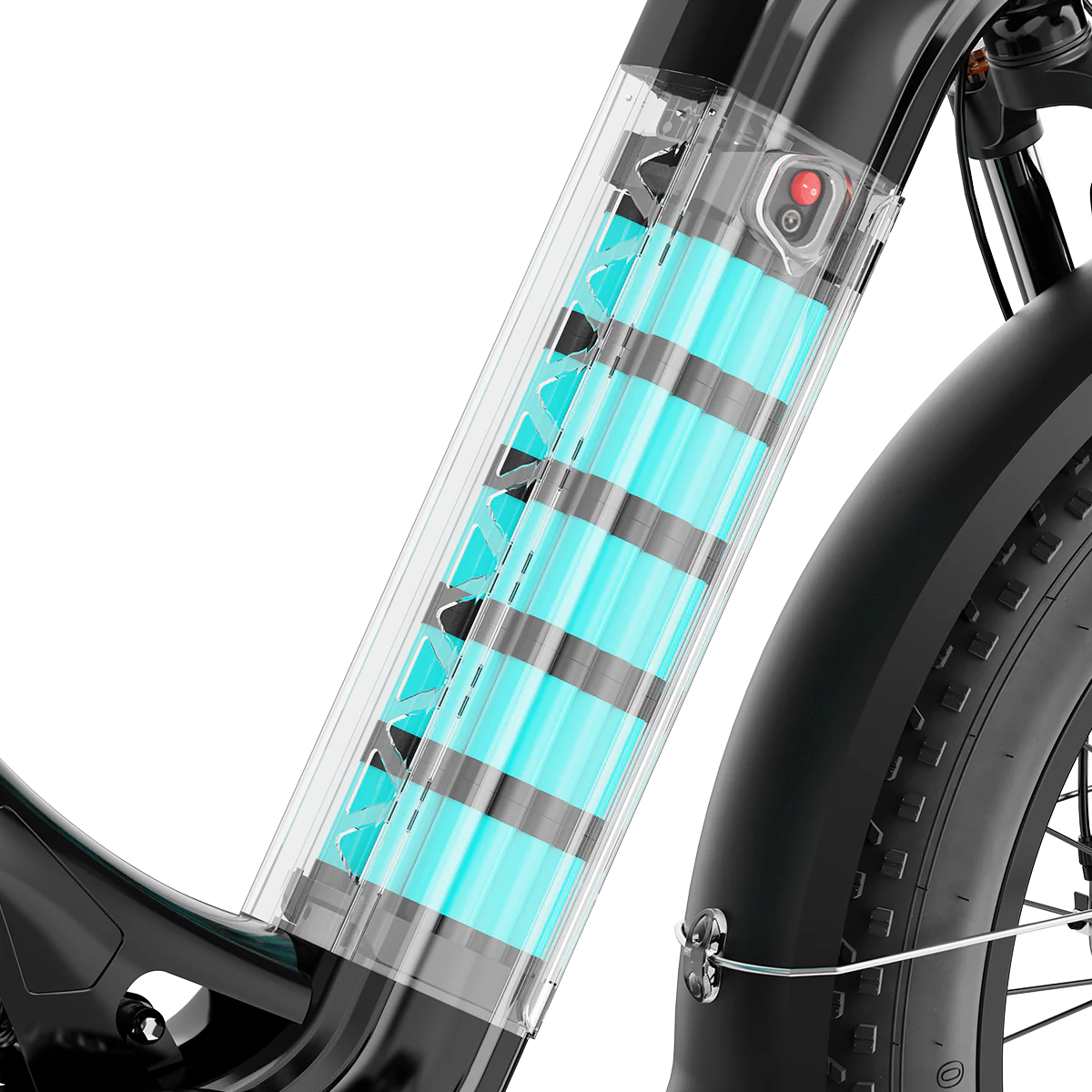

Equipped with Samsung Battery
The M1 Xterrain ST uses Samsung 21700 battery cells, which have higher capacity and 6% greater energy density than traditional 18650 cells, allowing for longer range and higher power output. It features a quick-detach battery structure for easy replacement and maintenance, enhancing user convenience. The battery also has an IP65 rating, providing excellent waterproof performance for reliable operation in various environments.

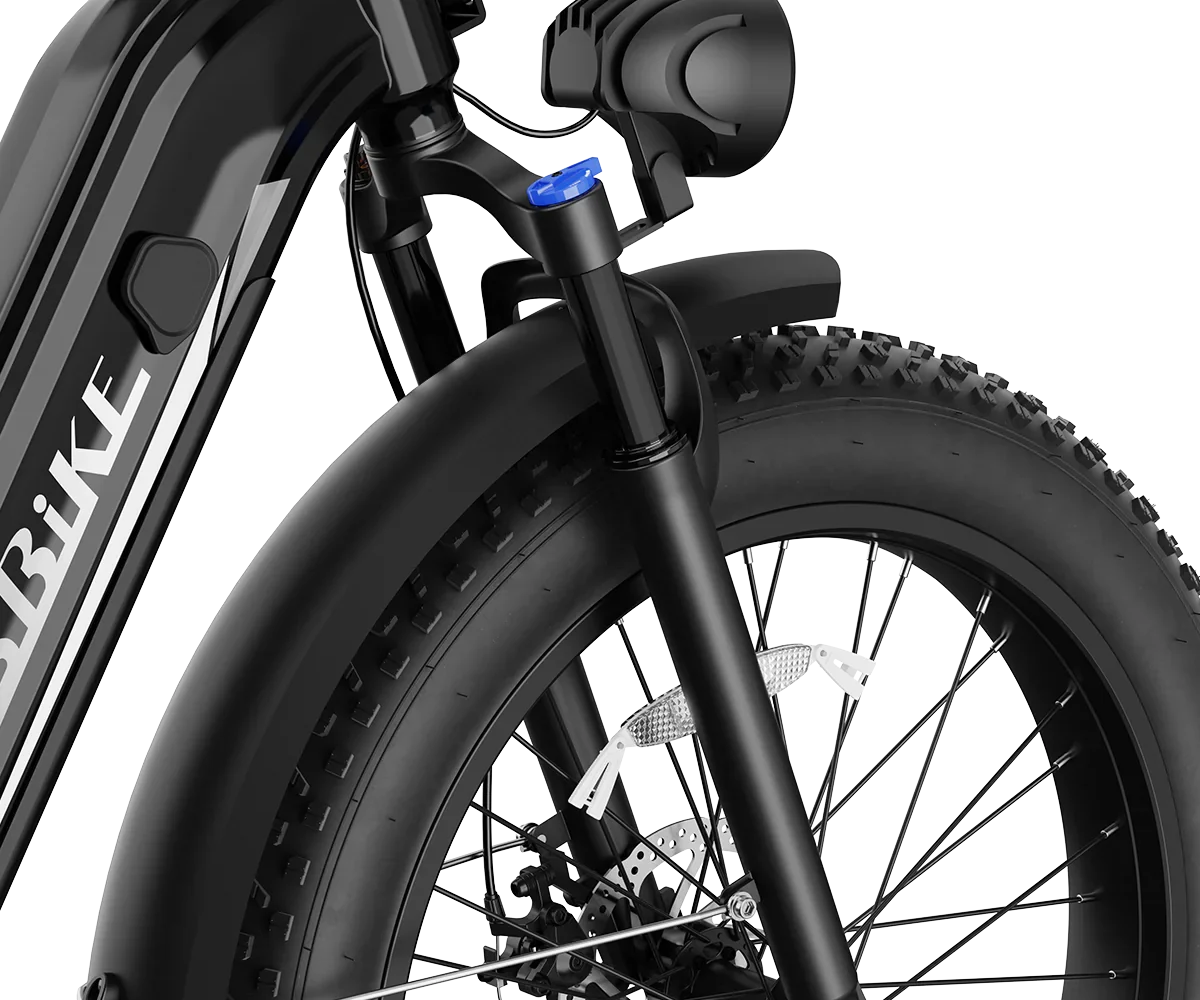

26" x 4" Puncture Resistant Tires
Equipped with a 26″ x 4″ puncture-resistant Chaoyang fat tire and front suspension, it can conquer flat roads, mountain trails, snowy terrain, and gravel paths, providing better traction.
Front And Rear Disc Brakes 180 Mm
Equipped with Zoom calipers and 180 mm disc rotors, the M1 Xterrain ST brakes are designed to offer performance comparable to hydraulic disc brakes.
Specifications
Vehicle Specifications
Pedal Assist Range: 74 Miles.
Pure Electric Range: 36 Miles.
Top Speed: 30 Mph.
Dimensions: 72*26*47(Inch).
Max Load Capacity: 450 Lbs.
Ebike Net Weight: 64 Lbs.
Torque: 110Nm.
Battery: Samsung 48V*13AH Ip65 Waterproof, UL2271 Certified.
Electric Motor Control
Display: Lcd Display With USB Charging.
Pas Levels: 0-5 Pas.
Throttle: Half-Twist Throttle / Optional Thumb Throttle.
Controller: 48V/22A, With Temperature Control Protection.
Motor: 1500W Rear Hub Brushless Motor.
Sensors: Speed Sensor.
Freewheel: Shimano 7-Speed Indexing, 14-28T.
Rear Derailleur: Shimano 14-28T.
Shifter Shimano: 7-Speed.
Charger: 2A Smart Charger, Ul/FCC Dual Certified.
Frame Assembly
Front Suspension: Aluminum Adjustable Shock Absorbers.
Front Suspension: Travel Total Length 530mm, Travel 100mm.
Handlebar: Riser Handlebar, Grip Length 104mm, Total Length 66cm.
Pedals: 9/16″, With Reflectors.
Chain: 1/2″*3/32″*118l, 21-Speed Indexing.
Crankset: 170mm Crank Arms, 48t Chainring.
Battery Weight: 8 Lbs.
Assembly Components
Rim: Aluminum Alloy 26″4.0*12g*36h.
Spokes: 45# 12g*212mm, Compliant With En15194 Standard.
Tire Brand: CHAOYANG All-Terrain Tire
Tire Size: 26″*4.0″, 30psi.
Inner Tube: 26″*4.0″, Valve Stem 35mm.
Brake Levers: Aluminum Material (With Brake Priority Protection).
Brakes: Front And Rear Mechanical Disc Brakes.
Brake Rotors: 180mm.
Kickstand: Heavy-Duty Aluminum Kickstand.
* Where permitted by state law. ** Range can vary due to weight load, terrain, weather and other conditions. *** You MUST hold onto the E-Bike whenever loading cargo and/or a passenger. The kickstand is not designed to be used for loading cargo. Do not assume the bike is stable and balanced when using the kickstand. Always hold onto the bike when cargo is being loaded, in place, or attached to the bike.
⚠ Disclaimer: Must be 18 years of age or older to ride.
